Charge. Wash. Store.
Charging
USB charging input: 5V DC, 1A. Use the included
cable and an undamaged, reputable USB power supply suitable for
that input. The internal battery’s 3.7V rating is not the USB
input voltage. If a power supply’s compatibility is unclear,
contact support before charging.
Charge indoors in a dry location, on a stable noncombustible
surface, away from heat and flammable materials. The gun, cable,
hands and charging port must be dry. Do not charge while
washing, when submerged or after suspected water entry.
Disconnect after charging and close the USB cover fully before
use.
Do not crush, puncture, short-circuit, burn or modify the
battery. Do not expose it to temperatures above 122°F (50°C), as
stated on the supplied leaflet. Do not leave the product in a
hot vehicle. The maximum water temperature is not a permissible
battery storage or charging temperature.
Stop use and charging if the unit swells,
leaks, smells unusual, becomes unusually hot or shows battery
damage. Contact support for handling instructions. Do not send a
damaged battery product through ordinary mail without approved
shipping instructions. If there is smoke or fire, move away and
call emergency services.

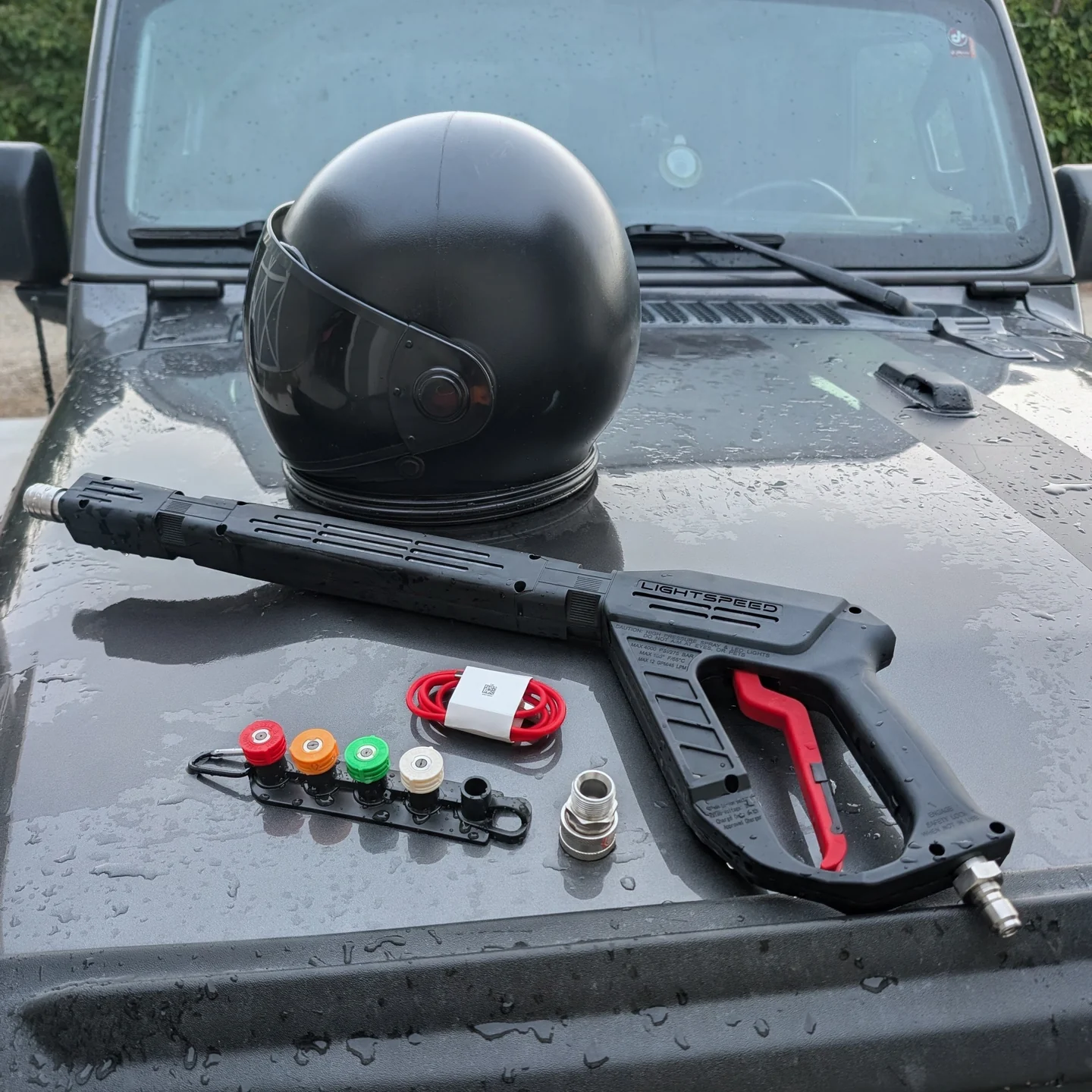

Product details
- Model
- V-01 Launch Edition
- Maximum water temperature
-
150°F. Follow any lower limit specified for your washer,
hose or accessories.
- Valve rating
-
4,000 PSI maximum and 12 GPM maximum. These are valve
ratings, not a promise of usable flow with the included
nozzles.
- Included nozzles
-
0°, 15°, 25° and 40°; size-2.5 orifices. Match to washer
pressure and flow.
- Hose connection
-
3/8-inch male quick-connect swivel; included M22-14 mm
adapter.
- Charging input
-
5V DC, 1A through USB-C. Battery powers lights and sound.
- Water exposure
-
Do not submerge. Keep the USB cover fully closed during use.
Temperature clarification: the supplied leaflet states 140°F.
Lightspeed confirms a maximum water temperature of 150°F for
this model. Always follow the lowest applicable limit in your
complete setup.
After use and storage
Shut down the washer, turn off water and relieve pressure with
the nozzle pointed safely. Engage the trigger lock, disconnect
as instructed and drain residual water. Let the exterior dry.
Store indoors in a dry location out of children’s reach and
protected from freezing. Never allow trapped water to freeze
inside the gun.
Do not lubricate, tighten, disassemble or replace internal parts
while pressurized. Contact support before internal servicing.
Battery and electronic repairs require appropriate expertise.
Dispose of the battery-containing product through an appropriate
local battery or electronics collection service, not household
trash.
